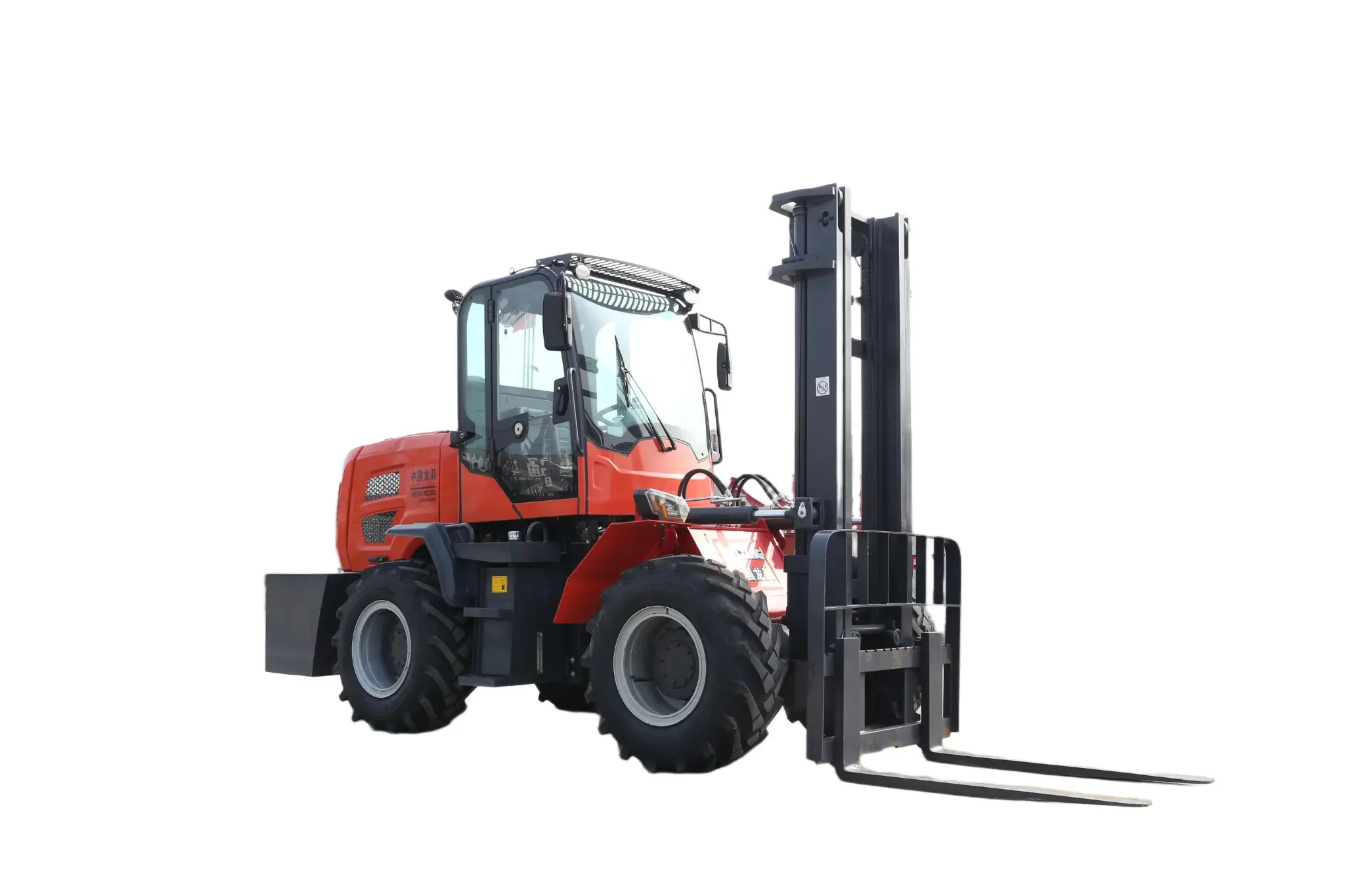

T50 Rough Terrain Forklift - Complete Side View with White Background Display
  • Rough Terrain Forklifts
  • HEAVY DUTY

T50 – 5 Ton Rough Terrain Forklift | LT FORKLIFT

T50

Maximum 5-ton lifting capacity
Extended 4000mm lifting height
Large 16/70-24 tires for superior traction
Reinforced 35mm steel frame
76KW turbo engine for power
Excellent load distribution
Load Capacity

5,000 kg

Lift Height

4000 mm

Power

Diesel

Drive

4WD

Get a Quote
Download PDF

Full Specifications

The T50 is a 5-ton rough terrain forklift designed for maximum lifting power in demanding environments. Featuring a Yunnei 4102 turbo engine (76KW), 4000mm lifting height, large 16/70-24 tires, and reinforced steel frame, the T50 is engineered for heavy-duty construction, mining, and industrial applications.

Load Capacity：5,000 kg
Standard Lift Height：4000 mm
Max Lift Height：4000 mm
Engine Model：Yunnei 4102 Turbo
Engine Power：76 KW
Battery Specs：N/A
Transmission：280 Dual-Speed High-Low Torque Converter
Max Speed (Loaded)：N/A
Max Speed (Unloaded)：N/A
Gradeability：≤38°
Min Turning Radius：4500 mm
Overall Dimensions (L)：4550 mm
Overall Dimensions (W)：2000 mm
Overall Dimensions (H)：2900 mm
Self Weight：6200 kg
Fork Length：1520 mm
Ground Clearance：350 mm
Front Tire：16/70-24
Rear Tire：16/70-24
Mast Tilt Angle：10°/-6°
Fuel/Battery Capacity：N/A

Product Highlights

5 Ton Lifting Capacity

Maximum 5000kg payload enables handling of the heaviest loads with full stability and control.

4000mm Lifting Height

Extended 4000mm lifting height allows stacking of materials at greater heights for improved storage efficiency.

Large 16/70-24 Tires

Extra-large tires provide superior traction, load distribution, and terrain capability.

Reinforced Steel Frame

Heavy-duty 35mm reinforced steel frame ensures durability and longevity in the most demanding applications.
