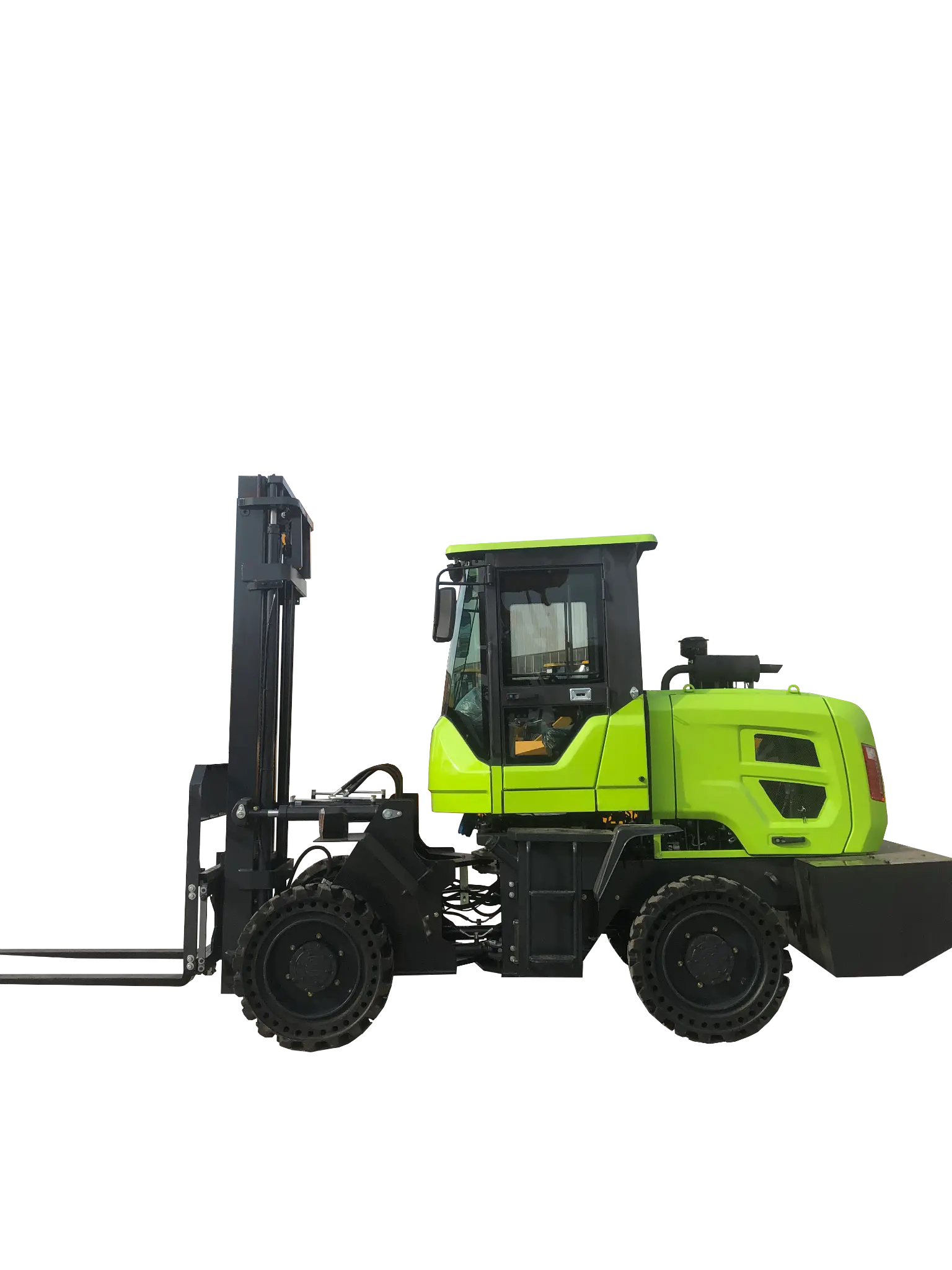

T30 3-ton Rough Terrain Forklift - Fluorescent Green Full-Time 4WD Forklift Side View
  • Rough Terrain Forklifts
  • BEST SELLER

T30 – 3 Ton Rough Terrain Forklift | LT FORKLIFT

T30

Full-time 4WD for maximum traction
Yunnei 490 diesel engine – proven reliability
38° gradeability for steep terrain
High ground clearance (280mm)
Heavy-duty frame for demanding environments
Load Capacity

3,000 kg

Lift Height

3,000 mm

Power

Diesel

Drive

Full-time 4WD

Get a Quote
Download PDF

Full Specifications

The T30 is a powerful 3-ton rough terrain forklift designed for demanding construction, mining, and agricultural applications. Featuring a Yunnei 490 engine (37KW, Euro 2 compliant), advanced four-wheel drive system, and exceptional gradeability, the T30 delivers reliable performance in the most challenging environments.

Load Capacity：3,000 kg
Standard Lift Height：3,000 mm
Max Lift Height：6,000 mm
Engine Model：Yunnei 490
Engine Power：37 kW
Battery Specs：-
Transmission：Hydraulic
Max Speed (Loaded)：20 km/h
Max Speed (Unloaded)：25 km/h
Gradeability：≤38°
Min Turning Radius：3,500 mm
Overall Dimensions (L)：4,200 mm
Overall Dimensions (W)：1,800 mm
Overall Dimensions (H)：2,600 mm
Self Weight：5,200 kg
Fork Length：1,070 mm
Ground Clearance：280 mm
Front Tire：16/70-20
Rear Tire：12.5/70-16
Mast Tilt Angle：-
Fuel/Battery Capacity：100L Diesel Tank

Product Highlights

Powerful 37KW Engine

Equipped with Yunnei 490 engine (37KW, Euro 2 compliant) delivering exceptional power and torque for demanding lifting operations.

Full-Time 4WD System

Advanced full-time four-wheel drive with 265 dual-speed high-low pump torque converter for superior traction and control on any terrain.

Steep Gradeability

Capable of climbing grades up to 38°, making it ideal for mining, quarries, and steep construction sites.

Compact Turning Radius

3500mm turning radius provides excellent maneuverability in confined spaces while maintaining stability.
