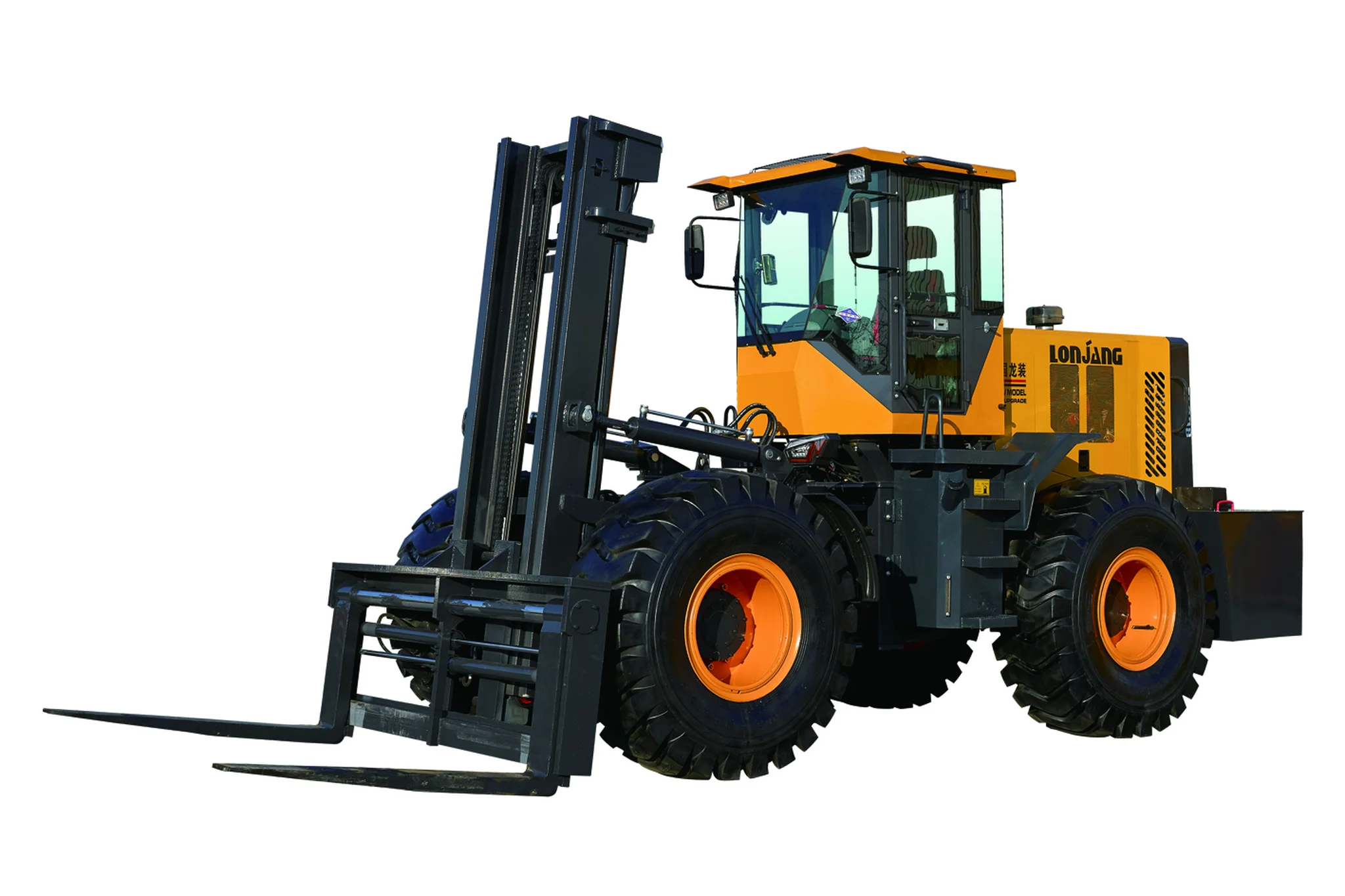

T100 rough terrain forklift complete side profile on white background showing full machine proportions and design
  • Rough Terrain Forklifts
  • HEAVY DUTY

T100 – 10 Ton Rough Terrain Forklift | LT FORKLIFT

T100

Maximum 10-ton lifting capacity
Premium Deutz 6105 turbo engine
Extended 4000mm lifting height
Dual 12R22.5 heavy-duty tires
28-speed drive axle for power
Ultimate durability and reliability
Load Capacity

10,000 kg

Lift Height

4000 mm

Power

Diesel

Drive

Full-time 4WD

Get a Quote
Download PDF

Full Specifications

The T100 is a 10-ton rough terrain forklift engineered for the most extreme heavy-duty applications. Featuring a Deutz 6105 turbo engine (92KW), 4000mm lifting height, dual 12R22.5 tires, and reinforced 28-speed drive axle, the T100 is the ultimate solution for mining, quarries, and large-scale industrial operations.

Load Capacity：10,000 kg
Standard Lift Height：4000 mm
Max Lift Height：4000 mm
Engine Model：Deutz 6105 Turbo
Engine Power：92 KW
Battery Specs：N/A
Transmission：28-Speed Drive Axle
Max Speed (Loaded)：N/A
Max Speed (Unloaded)：N/A
Gradeability：≤38°
Min Turning Radius：N/A
Overall Dimensions (L)：4800 mm
Overall Dimensions (W)：2200 mm
Overall Dimensions (H)：2850 mm
Self Weight：10000 kg
Fork Length：1520 mm
Ground Clearance：350-450 mm
Front Tire：12R22.5 Dual
Rear Tire：12R22.5 Dual
Mast Tilt Angle：10°/-6°
Fuel/Battery Capacity：N/A

Product Highlights

10 Ton Maximum Capacity

Exceptional 10000kg payload enables handling of the largest loads with full stability and control.

Deutz 6105 Turbo Engine

Premium Deutz 6105 turbo engine (92KW, Euro 2) provides exceptional power and reliability.

4000mm Lifting Height

Extended 4000mm lifting height allows efficient stacking and storage of materials.

Dual 12R22.5 Tires

Heavy-duty dual tires provide maximum traction and load distribution for extreme conditions.
